CVD Graphene Film Specifications
Growth Method | CVD Synthesis |
---|---|

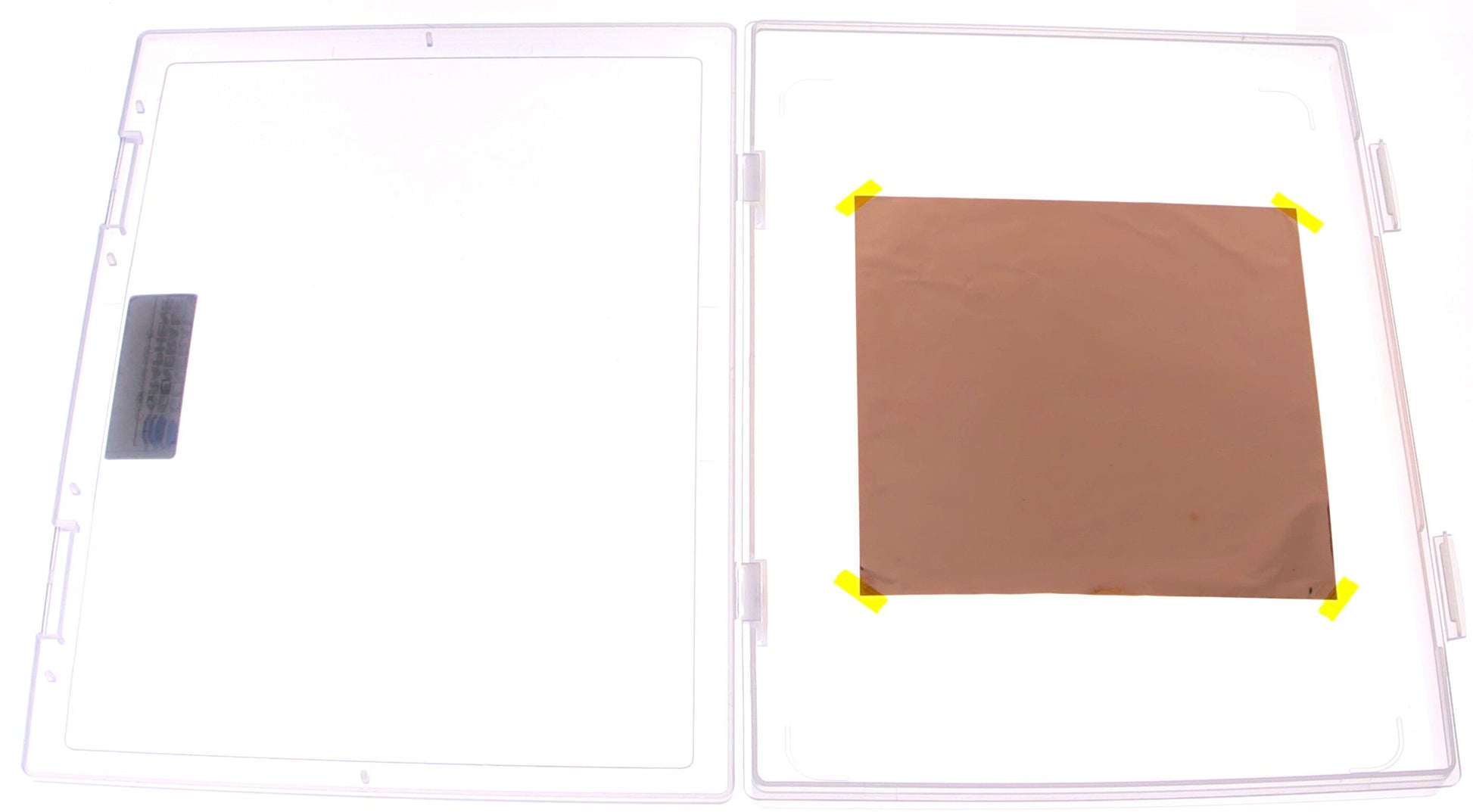

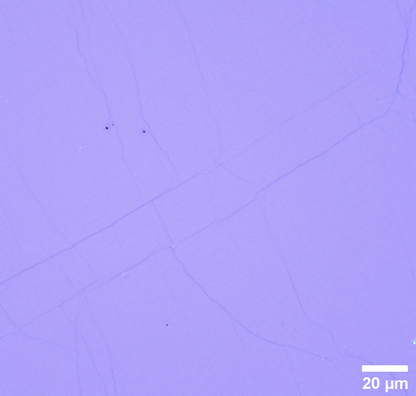

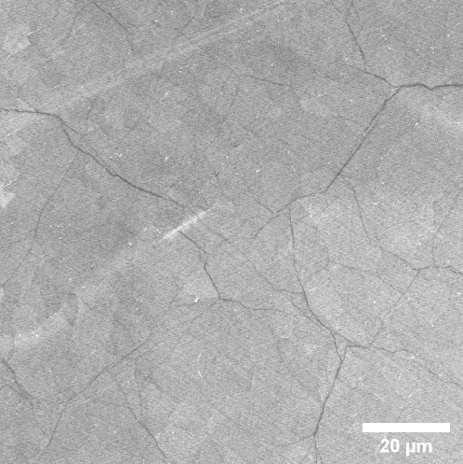

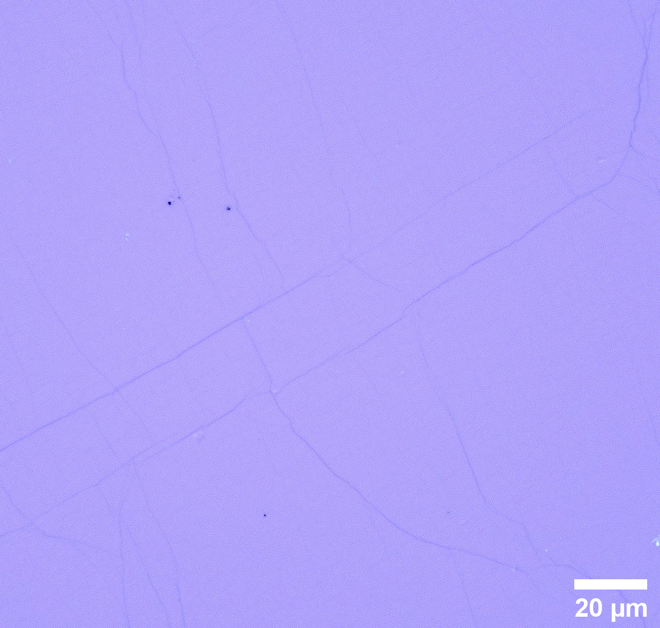

Quality Control | Raman, SEM, and Optical |
Transparency | ~97.7% |
Graphene Thickness (Å) | 3.45 |
Cu Grain Orientation | Predominantly Cu(111) |
Cu Catalyst Thickness (µm) | 20 |
Average Crystal Size (catalyst) | cm-scale |
Average Graphene Grain Size (µm) | ~80 |
Multilayer Coverage (%) | < 5% |

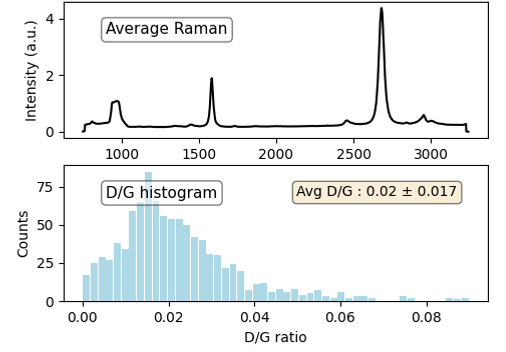

I2D/IG Average - after transfer | > 1.6 |
ID/IG Average - after transfer | < 0.05 |
2D peak FWHM (cm-1) - after transfer | ~ 35 |
Sheet Resistance (Ω/sq) - on SiO2/Si wafer | < 800 |
Mobility (cm2/Vs)* (dep on transfer) | > 1000 |
Appearance | Transparent film |
Applications
Biosensors, membranes, heating films, fundamental research.
