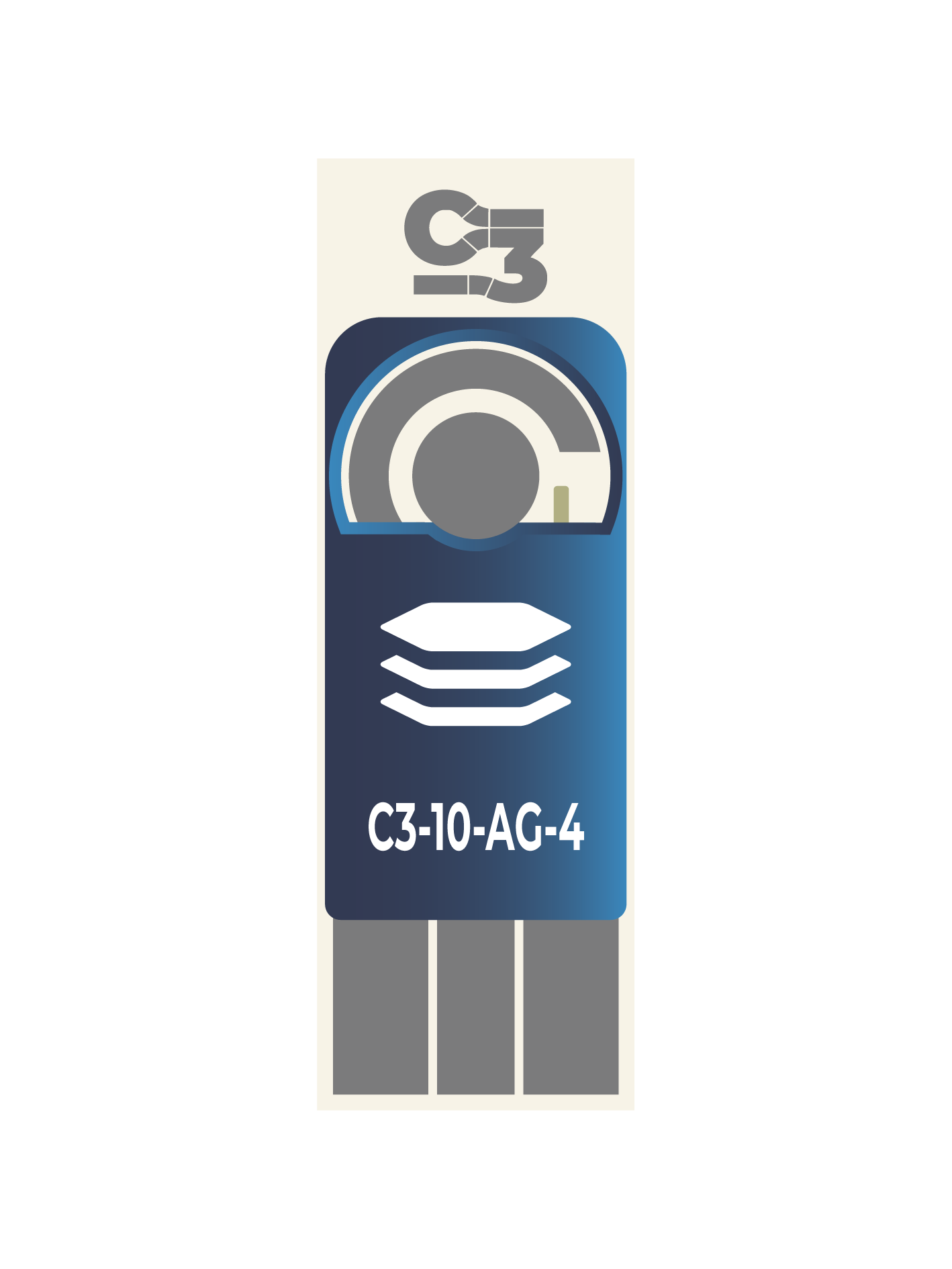

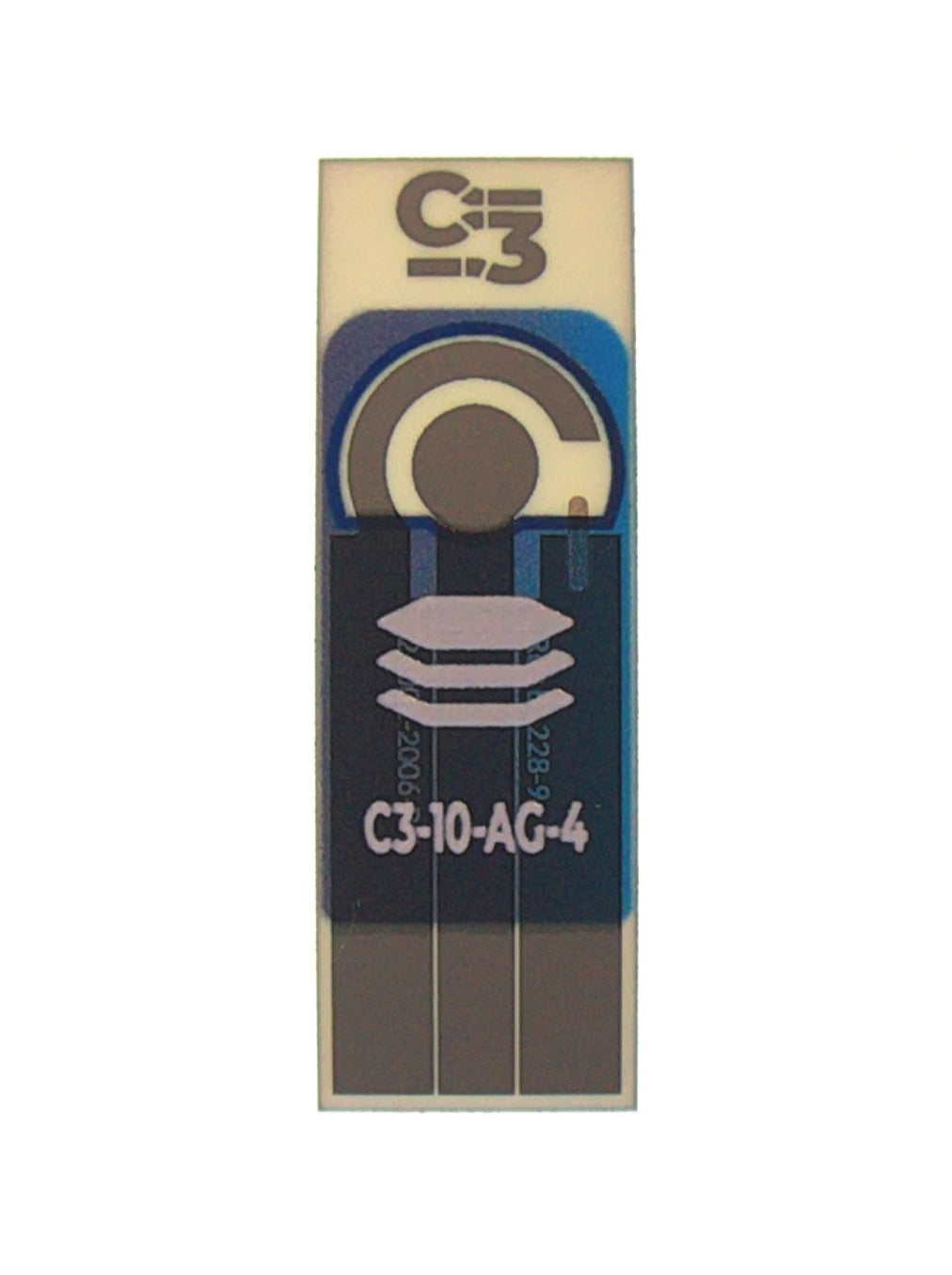

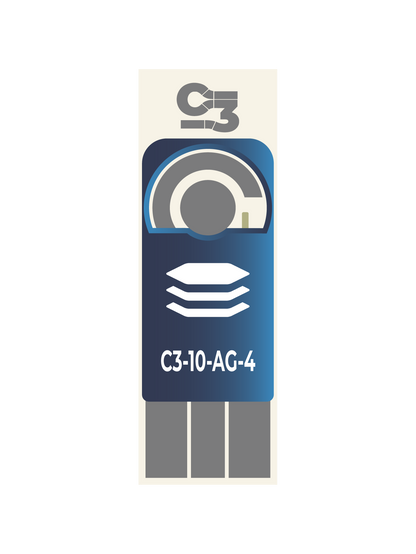

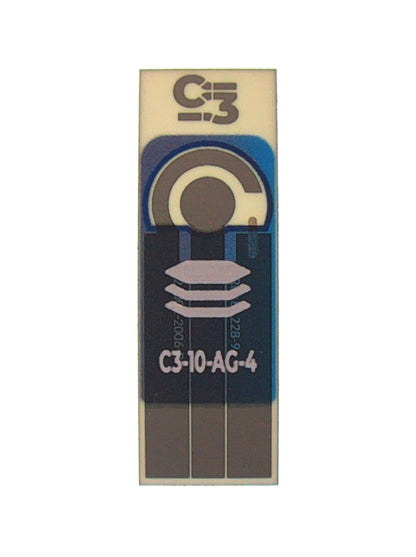

C3 Electrode Specifications
| Growth Method | Chemical Vapor Deposition |
|---|---|
| Quality Control | Raman, SEM, and 4-Point Probe |
| Dimensions (mm) | 10 x 30 x 0.5 |
| Substrate Material | Alumina |
| Composition (EDS) | > 99% C (No Binders) |
| Carbon Thickness (µm) | 2.3 ± 0.2 |
| Sheet Resistance (ohms/sq) | 5 ± 0.5 |
| Surface Area* | 0.46 ± 0.02 |
| Conductivity (S/m) | 2x10^5 |
| Chemical Stability** | Binder free, high for most solvents |
| WE Geometric Area (mm^2) | 11.88 |
| Working and Counter Electrode | Pristine Carbon |
| Reference Electrode | Ag/AgCl |
