CVD Graphene Film on Wafer

CVD Graphene Film on Wafer

Regular price $375.00 USD
Regular price Sale price $375.00 USD
Sale Sold out
Shipping calculated at checkout.

Our monolayer graphene films consist of a single atomic layer of graphene grown by CVD on copper foil and subsequently transferred onto 300 nm SiO₂/Si wafers using a wet transfer process. As a two-dimensional material, graphene exhibits exceptional electrical and thermal properties along with high optical transparency, making it well suited for a wide range of electronic, optical, and sensing applications.

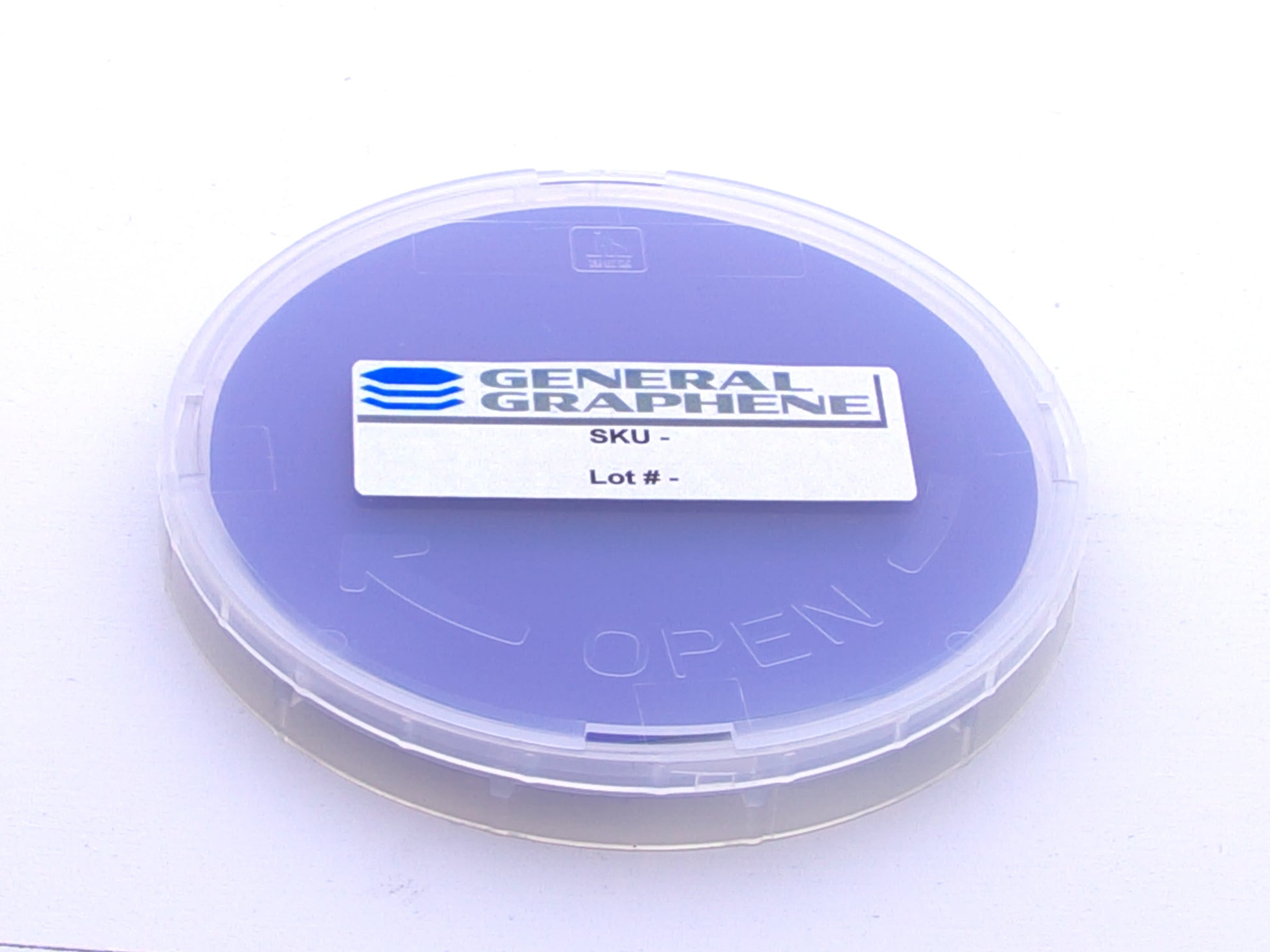

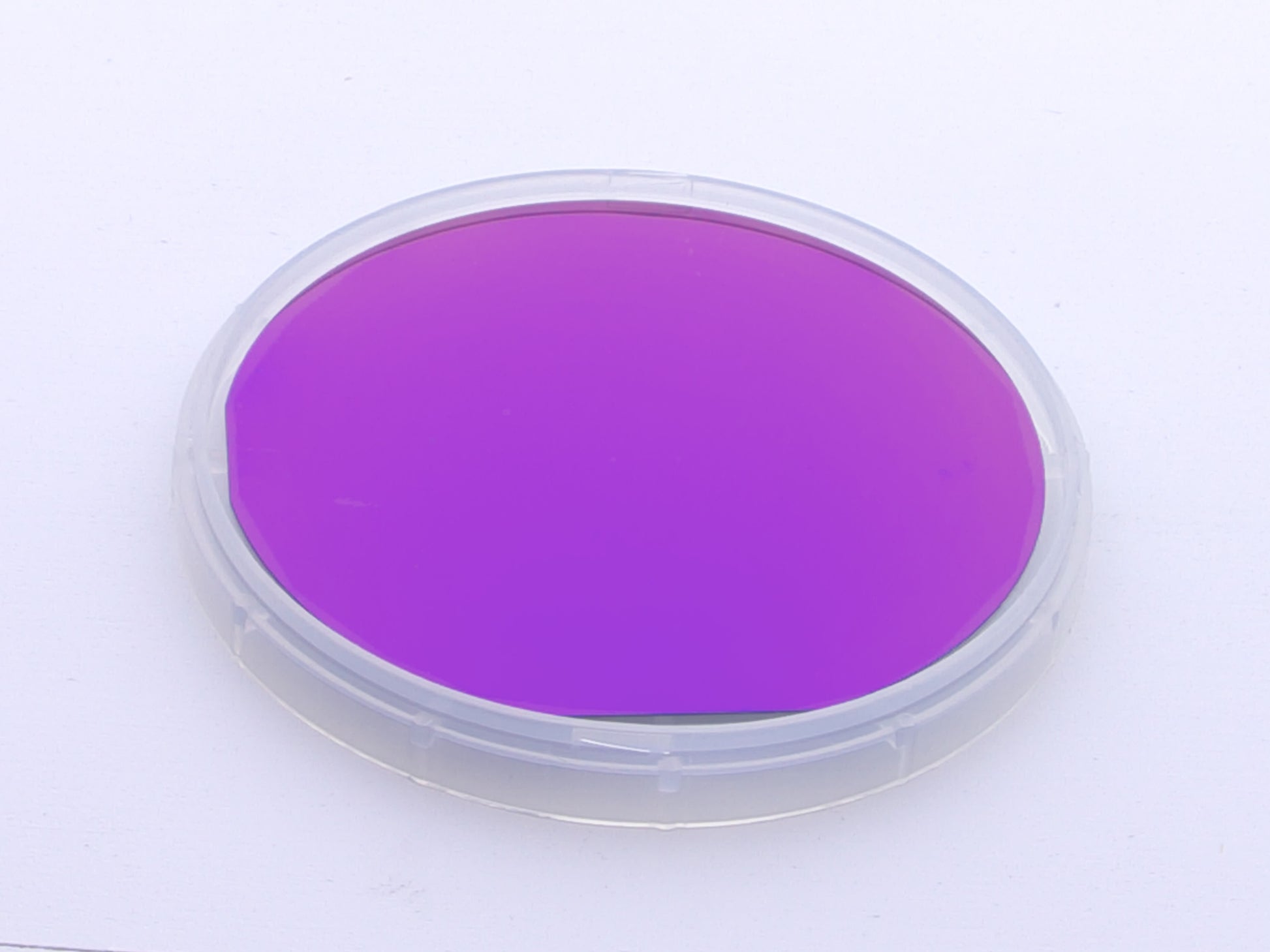

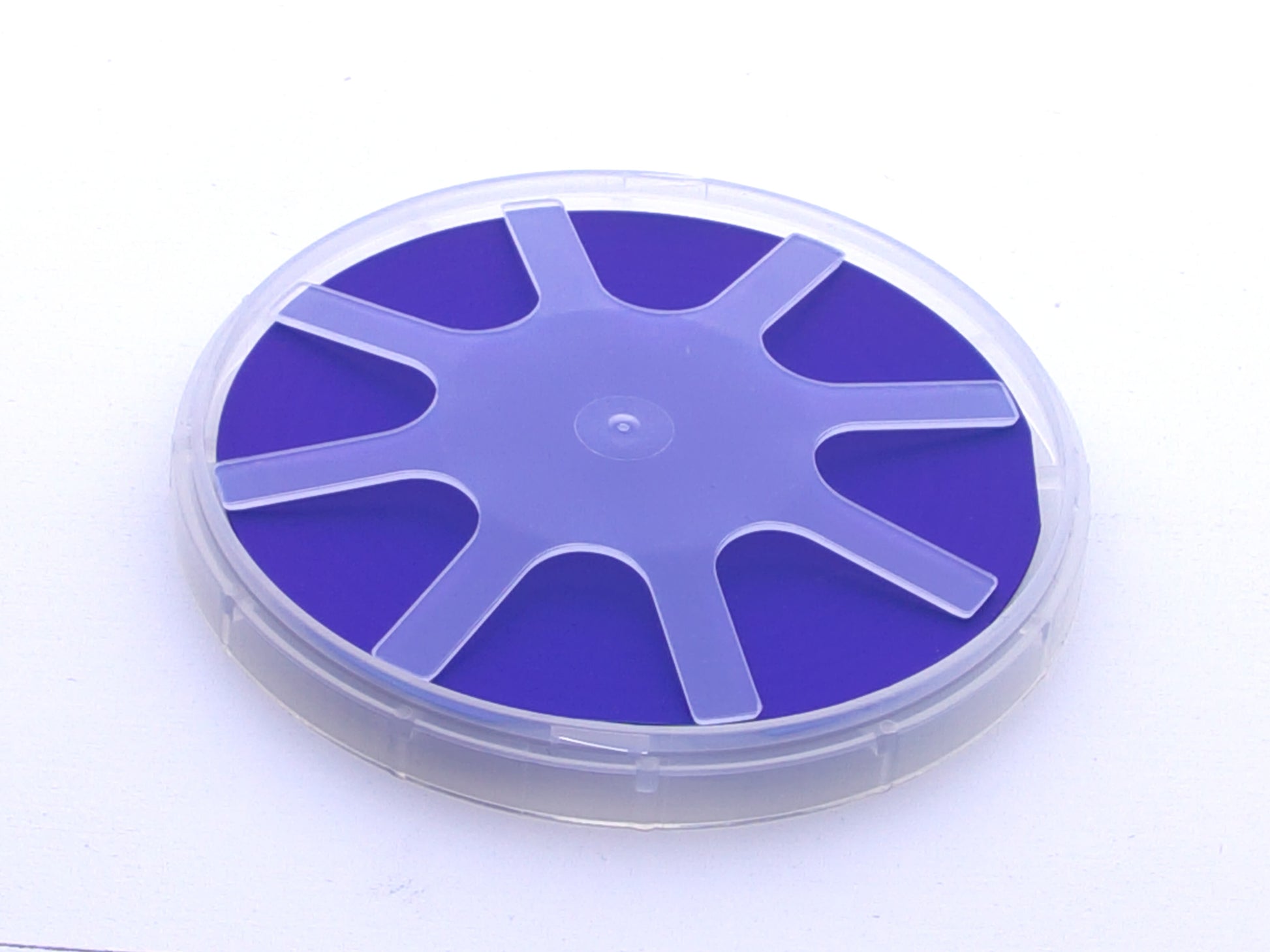

These films are supplied on standard silicon wafers with a 300 nm SiO₂ layer, providing a uniform and well-established platform for device fabrication, characterization, and research use.

View full details

CVD Graphene Film Specifications

Growth MethodCVD Synthesis

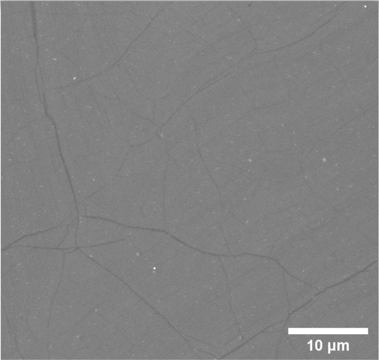

Quality ControlRaman, SEM, and Optical
Transparency~97.7%
Graphene Thickness (Å)3.45
Cu Grain OrientationPredominantly Cu(111)
Cu Catalyst Thickness (µm)20
Average Crystal Size (catalyst)cm-scale
Average Graphene Grain Size (µm)~80
Multilayer Coverage (%)< 5%
I2D/IG Average - after transfer> 1.6
ID/IG Average - after transfer< 0.05
2D peak FWHM (cm-1) - after transfer~ 35
Sheet Resistance (Ω/sq) - on SiO2/Si wafer 500 +/- 70 ohms/sq
Mobility (cm2/Vs)* (dep on transfer)> 3000
AppearanceTransparent film

Applications

Biosensors, membranes, heating films, fundamental research.
